Modèle d'attributs de référence (V4)
Le modèle ci-dessous reprend l'ensemble des possibilités du logiciel en terme de définition des champs des formulaires disponibles via leur intégration dans un formulaire type. Ce référentiel est compatible avec la version 4 du logiciel.

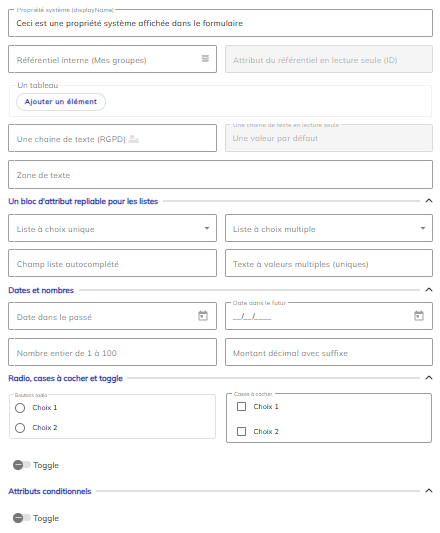

Modèle d'attributs en prévisualisation écran :
Modèle d'attributs au format Json
{
"type": "object",
"title": "Modèle de référence v4",
"$schema": "http://json-schema.org/draft-07/schema",
"required": [
],
"internals": [
{
"url": "groups",
"service": "group",
"bindings": [
{
"sort": "asc",
"limit": 15,
"attribute": "groupe",
"sortField": "displayName",
"loadOnInit": true,
"viewFormat": "{displayName}",
"initOnField": true,
"queryParams": "identifier=@me.groups.identifier",
"searchProperty": "displayName",
"serviceAttribute": "displayName",
"allowEmptyResults": false
},
{
"attribute": "groupe_id",
"searchProperty": "identifier",
"isValidationKey": true,
"serviceAttribute": "identifier"
}
]
}
],
"properties": {
"texte": {
"gdpr": true,
"type": "string",
"view": {
"size": "small-block",
"type": "input-text"
},
"title": "Une chaine de texte (RGPD)",
"position": 5,
"readOnly": false,
"filterNode": "partial",
"description": ""
},
"bloc_1": {
"type": "object",
"title": "Un bloc d'attribut repliable pour les listes",
"position": 8,
"properties": {
"autocomplete": {
"enum": [
"Chat",
"Chien",
"Cheval",
"Lapin",
"Loup"
],
"type": "string",
"view": {
"size": "small-block",
"type": "input-autocomplete"
},
"title": "Champ liste autocomplété",
"position": 3,
"filterNode": "partial"
},
"liste_unique": {
"enum": [
"Choix 1",
"Choix 2"
],
"type": "string",
"view": {
"size": "small-block",
"type": "input-select"
},
"title": "Liste à choix unique",
"pattern": "^(Choix 1|Choix 2)$",
"position": 1,
"filterNode": "exact"
},
"liste_multiple": {
"enum": [
"Choix 1",
"Choix 2"
],
"type": "array",
"view": {
"size": "small-block",
"type": "input-select-multiple"
},
"title": "Liste à choix multiple",
"position": 2,
"filterNode": "exact"
},
"texte_valeur_multiple": {
"type": "array",
"view": {
"size": "small-block",
"type": "input-text-multiple",
"copySeparator": ";"
},
"items": {
"type": "string"
},
"title": "Texte à valeurs multiples (uniques)",
"maxItems": 5,
"minItems": 1,
"position": 4,
"filterNode": "partial",
"uniqueItems": true
}
}
},
"bloc_2": {
"type": "object",
"title": "Dates et nombres",
"position": 9,
"properties": {
"date1": {
"type": "string",
"view": {
"mask": {
"mask": "d0/M0/0000",
"showMaskTyped": false
},
"size": "small-block",
"type": "input-date",
"maxDate": "today",
"minDate": "1970-01-01"
},
"title": "Date dans le passé",
"format": "date",
"position": 1,
"filterNode": "date"
},
"date2": {
"type": "string",
"view": {
"mask": {
"mask": "d0/M0/0000",
"showMaskTyped": true
},
"size": "small-block",
"type": "input-date",
"minDate": "today"
},
"title": "Date dans le futur",
"format": "date",
"position": 2,
"filterNode": "date"
},
"entier": {
"type": "integer",
"view": {
"size": "small-block",
"type": "input-number"
},
"title": "Nombre entier de 1 à 100",
"maximum": 100,
"minimum": 1,
"pattern": "^((-?[1-9])\\d*)$",
"position": 3,
"filterNode": "numeric"
},
"number": {
"type": "number",
"view": {
"mask": {
"mask": "separator.2",
"suffix": " €"
},
"size": "small-block",
"type": "input-number"
},
"title": "Montant décimal avec suffixe",
"pattern": "^-?\\d+(\\.\\d{1,2})?$",
"position": 4,
"filterNode": "numeric"
}
}
},
"bloc_3": {
"type": "object",
"title": "Radio, cases à cocher et toggle",
"position": 10,
"properties": {
"radio": {
"enum": [
"Choix 1",
"Choix 2"
],
"type": "string",
"view": {
"size": "small-block",
"type": "input-radio"
},
"title": "Boutons radio",
"pattern": "^(Choix 1|Choix 2)$",
"position": 1,
"filterNode": "exact"
},
"cocher": {
"type": "array",
"view": {
"size": "small-block",
"type": "input-checkbox"
},
"items": {
"enum": [
"Choix 1",
"Choix 2"
],
"type": "string"
},
"title": "Cases à cocher",
"position": 2,
"filterNode": "exact"
},
"toggle": {
"type": "boolean",
"view": {
"type": "input-toggle"
},
"title": "Toggle",
"default": false,
"position": 3,
"filterNode": "exact"
}
}
},
"bloc_4": {
"if": {
"properties": {
"onoff": {
"const": true
}
}
},
"then": {
"required": [
"champ_conditionnel"
],
"properties": {
"champ_conditionnel": {
"type": "string",
"view": {
"type": "input-text"
},
"title": "Champ obligatoire",
"position": 2,
"filterNode": "partial",
"description": ""
}
}
},
"type": "object",
"title": "Attributs conditionnels",
"position": 11,
"properties": {
"onoff": {
"type": "boolean",
"view": {
"type": "input-toggle"
},
"title": "Toggle",
"default": false,
"position": 1,
"filterNode": "exact"
}
}
},
"groupe": {
"type": "string",
"view": {
"size": "small-block",
"type": "input-autocomplete"
},
"title": "Référentiel interne (Mes groupes)",
"position": 2,
"filterNode": "partial",
"description": ""
},
"tableau": {
"type": "array",
"view": {
"type": "input-array"
},
"items": {
"type": "object",
"properties": {
"date": {
"type": "string",
"view": {
"mask": {
"mask": "d0/M0/0000",
"showMaskTyped": true
},
"type": "input-date",
"maxDate": "today",
"minDate": "1970-01-01"
},
"title": "Une date",
"format": "date",
"position": 3
},
"niveau": {
"enum": [
"Débutant",
"Intermédiaire",
"Avancé",
"Expert"
],
"type": "string",
"view": {
"type": "input-select"
},
"title": "Une liste de valeurs",
"position": 2
},
"resume": {
"type": "string",
"view": {
"type": "input-textarea"
},
"title": "Une note",
"position": 4
}
}
},
"title": "Un tableau",
"position": 4,
"description": "",
"uniqueItems": true
},
"groupe_id": {
"type": "string",
"view": {
"size": "small-block",
"type": "input-text"
},
"title": "Attribut du référentiel en lecture seule (ID)",
"position": 3,
"readOnly": true,
"filterNode": "partial",
"description": ""
},
"zone_texte": {
"type": "string",
"view": {
"type": "input-textarea",
"nbLineToShow": 3
},
"title": "Zone de texte",
"position": 7,
"filterNode": "partial"
},
"displayName": {
"type": "string",
"view": {
"type": "input-text"
},
"title": "Propriété système (displayName)",
"default": "Ceci est une propriété système affichée dans le formulaire",
"position": 1,
"filterNode": "partial",
"systemProperty": true
},
"texte_en_lecture_seule": {
"type": "string",
"view": {
"size": "small-block",
"type": "input-text"
},
"title": "Une chaine de texte en lecture seule",
"default": "Une valeur par défaut",
"position": 6,
"readOnly": true,
"filterNode": "partial",
"description": ""
}
},
"additionalProperties": true
}
